Solar Cable TUV 2PFG 1169

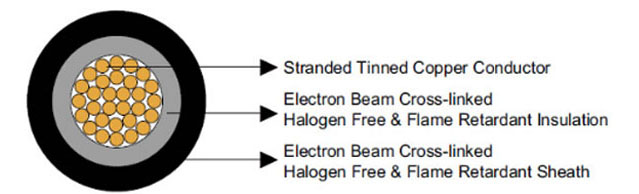

Description

Electrical Properties

» Rated Voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC

» Maximum Permitted DC Voltage: 1.8 kV DC (conductor/conductor, non earthed system, circuit not under load)

» Insulation Resistance: 1000 MΩ-km

» Spark Test: 6000 Vac (8400 Vdc)

» Voltage Withstand: 6500 Vac for 5 min

Thermal Properties

» Maximum Voltage: Ambient Temperature: -40℃ ~ +90℃

» Maximum Temperature At Conductor: 120℃ (20000h) according to IEC/EN 60216-1

» Short Circuit Temperature: 200℃/5 sec

» Thermal Endurance Test: According to EN 60216-2 (temperature index +120° C)

» High Temperature Pressure Test: According to EN 60811-3-1

» Damp-Heat Resistance: According to EN 60068-2-78 with 85% humidity

Mechanical Properties

» Minimum Bending Radius: 4×OD (fixed), 5×OD (flexing)

» Dynamic Penetration: According to 2 PfG 1169/08.2007 Annex F

» Notch Propagation: According to 2 PfG 1169/08.2007 Annex G

» Tensile Strength And Elongation Of Insulation And Jacket: According to EN 60811

» Anticipated Period Of Use: 25 years

Chemical Properties

» Ozone Resistance: According to EN 50396 part 8.1.3 Method B

» Weathering- UV Resistance: According to HD 605/A1

» Ammoniac resistant

» Very good resistance to oils and chemicals

» High wear and robust, abrasion resistant

» Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)

Fire Performance

» Flame retardant according to EN 50265-2-1, IEC 60332-1, VDE 0482-332-1-2, DIN EN 60332-1-2

» Low smoke emission according to IEC 61034, EN 50268

» Halogen free according to EN 50267-2-1, IEC 60754-1

» Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2

Application

These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.

Standards

2PfG 1169/08.2007 (PV1-F), TUV certificate, RHOS.

Specification
