APPLICATION:
AAC used in overhead electric power transmission and distribution lines with various grade voltages. Mainly used in urban areas for electricity transfer where the spacing is short and the supports are closer together. Apart from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties.

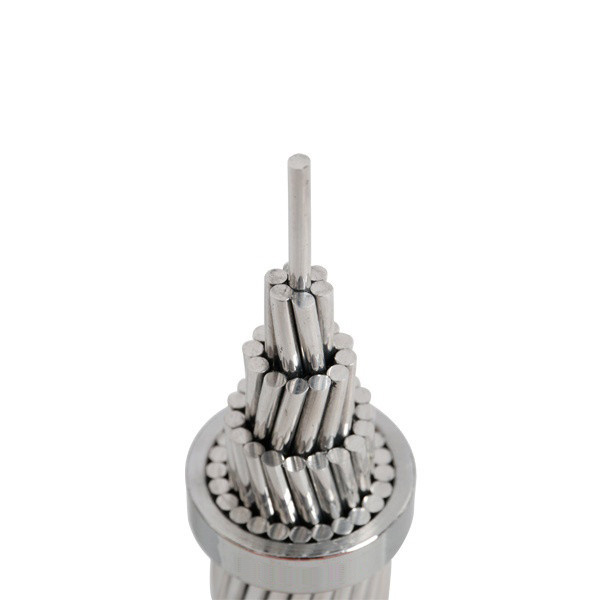

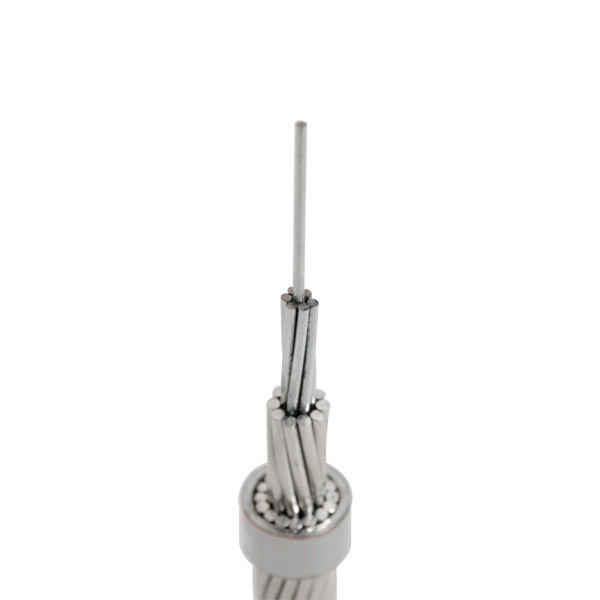

CONSTRUCTION:
Aluminum 1350-H19 wires, concentrically stranded.
The most commonly used stranding consists of 7, 19, 37, 61 and 91 wires.
Bare concentric-lay-stranded aluminum wires constructed with a straight round central aluminum wire surrounded by one or more layers of helically laid aluminum wires.
In all constructions, the successive layers shall have opposite directions of lay, the outermost layer being right-handed.
STANDARDS:
IEC 61089, ASTM B231,BS 215 Part 1, EN 50182, DIN 48201 Part 5 etc.
ASTM B231
All Aluminum Stranded Conductor (AAC)
Code Name | Total Area | Stranding Diameter | Diameter | Linear Mass | Nominal Breaking Load | 20°C | |
AWG or MCM | 2 | mm | mm | kg/km | daN | Ω/km | |
Peachbell | 6 | 13.29 | 7/1.554 | 4.67 | 37 | 249 | 2.1692 |
Rose | 4 | 21.16 | 7/1.961 | 5.89 | 58 | 396 | 1.3624 |
Iris | 2 | 33.61 | 7/2.474 | 7.42 | 93 | 597 | 0.8577 |
Pansy | 1 | 42.39 | 7/2.776 | 8.33 | 117 | 732 | 0.6801 |
Poppy | 1/0 | 53.48 | 7/3.119 | 9.36 | 147 | 873 | 0.5390 |
Aster | 2/0 | 67.42 | 7/3.503 | 10.51 | 186 | 1100 | 0.4276 |
Phlox | 3/0 | 85.03 | 7/3.932 | 11.80 | 234 | 1347 | 0.3390 |
Oxlip | 4/0 | 107.23 | 7/4.417 | 13.26 | 293 | 1698 | 0.2688 |
Valerian | 250 | 126.71 | 19/2.913 | 14.57 | 349 | 2062 | 0.2275 |
Sneezewort | 250 | 126.71 | 7/4.80 | 14.40 | 349 | 2007 | 0.2275 |
Laurel | 266.8 | 135.16 | 19/3.01 | 15.05 | 373 | 2200 | 0.2133 |
Daisy | 266.8 | 135.16 | 7/4.96 | 14.90 | 373 | 2141 | 0.2133 |
Peony | 300 | 152.00 | 19/3.193 | 15.97 | 419 | 2403 | 0.1896 |
Tulip | 336.4 | 170.45 | 19/3.381 | 16.91 | 470 | 2695 | 0.1691 |
Daffodil | 350 | 177.35 | 19/3.447 | 17.24 | 489 | 2804 | 0.1625 |
Canna | 397.5 | 201.42 | 19/3.673 | 18.36 | 555 | 3184 | 0.1431 |
Goldentuft | 450 | 228.00 | 19/3.909 | 19.55 | 629 | 3499 | 0.1264 |
Syringa | 477 | 241.68 | 37/2.882 | 20.19 | 666 | 3849 | 0.1193 |
Cosmos | 477 | 241.68 | 19/4.023 | 20.12 | 666 | 3708 | 0.1193 |
Hyacinth | 500 | 253.35 | 37/2.951 | 20.65 | 698 | 4035 | 0.1138 |
Zinnia | 500 | 253.35 | 19/4.12 | 20.60 | 698 | 3888 | 0.1138 |
Dahlia | 556.5 | 282.00 | 19/4.346 | 21.73 | 777 | 4327 | 0.1022 |
Mistletoe | 556.5 | 282.00 | 37/3.114 | 21.79 | 777 | 4362 | 0.1022 |
Meadowswe et | 600 | 304.00 | 37/3.233 | 22.63 | 838 | 4703 | 0.0948 |
Orchid | 636 | 322.25 | 37/3.33 | 23.31 | 888 | 4985 | 0.0894 |
Heuchera | 650 | 329.35 | 37/3.366 | 23.56 | 908 | 5095 | 0.0875 |
Flag | 700 | 354.71 | 61/2.72 | 24.48 | 978 | 5146 | 0.0813 |
Verbena | 700 | 354.71 | 37/3.493 | 24.45 | 978 | 5487 | 0.08130 |
Nasturtium | 715.5 | 362.58 | 61/2.75 | 24.76 | 1000 | 5874 | 0.07950 |
ASTM B231
All Aluminum Stranded Conductor (AAC)
Code Name |
Total Area |
Stranding and Wire Diameter |
Overall Diameter |
Linear Mass |
Nominal Breaking Load | 20°C | |
AWG or MCM | 2 | mm | mm | kg/km | daN | Ω/km | |
Violet | 715.5 | 362.85 | 37/3.533 | 24.74 | 1000 | 5609 | 0.07950 |
Cattail | 750 | 380.00 | 61/2.817 | 25.35 | 1048 | 5985 | 0.07590 |
Petunia | 750 | 380.00 | 37/3.617 | 25.32 | 1048 | 5875 | 0.07590 |
Lilac | 795 | 402.84 | 61/2.90 | 26.11 | 1111 | 6345 | 0.07150 |
Arbutus | 795 | 402.84 | 37/3.724 | 26.06 | 1111 | 6232 | 0.07150 |
Snapdragon | 900 | 456.06 | 61/3.086 | 27.78 | 1257 | 6978 | 0.06320 |
Cockscomb | 900 | 456.06 | 37/3.962 | 27.73 | 1257 | 6948 | 0.06320 |
Goldenrod | 954 | 483.42 | 61/3.177 | 28.60 | 1333 | 7896 | 0.05960 |
Magnolia | 954 | 483.42 | 37/4.079 | 28.55 | 1333 | 7258 | 0.05960 |
Camellia | 1000 | 506.71 | 61/3.251 | 29.36 | 1397 | 7753 | 0.05690 |
Hawkweed | 1000 | 506.71 | 37/4.176 | 29.23 | 1397 | 7608 | 0.05690 |
Larkspur | 1033.5 | 523.68 | 61/3.307 | 29.76 | 1444 | 8012 | 0.05500 |
Bluebell | 1033.5 | 523.68 | 37/4.244 | 29.72 | 1444 | 7863 | 0.05500 |
Marigold | 1113 | 563.93 | 61/3.432 | 30.89 | 1555 | 8628 | 0.05110 |
Hawthorn | 1192.5 | 604.26 | 61/3.551 | 31.05 | 1666 | 9245 | 0.04770 |
Narcissus | 1272 | 644.51 | 61/3.668 | 33.02 | 1777 | 9861 | 0.04770 |
Columbine | 1351.5 | 684.84 | 61/3.78 | 34.01 | 1888 | 8 | 0.04210 |
Carnation | 1431 | 725.10 | 61/3.89 | 35.03 | 1999 | 8 | 0.03980 |
Gladiolus | 1510.5 | 765.35 | 61/4.00 | 35.09 | 2110 | 11365 | 0.03760 |
Coreopsis | 1590 | 805.68 | 61/4.099 | 36.51 | 2221 | 11964 | 0.03568 |
Jessamine | 1750 | 886.71 | 61/4.302 | 38.72 | 2445 | 13168 | 0.03250 |
Cowslip | 2000 | 1013.42 | 91/3.76 | 41.40 | 2791 | 15300 | 0.02866 |
Lupine | 2500 | 1266.67 | 91/4.21 | 46.30 | 3524 | 18700 | 0.02300 |
Trillium | 3000 | 1520.13 | 127/3.90 | 50.75 | 4232 | 22500 | 0.01920 |
Bluebonnet | 3500 | 1773.50 | 127/4.21 | 54.80 | 4985 | 26200 | 0.01653 |
BS 215
All Aluminum Stranded Conductor (AAC)
Name | Nominal Cross Section | No./Dia. of Strandng Wires | al Area | Overall Diameter | Linear Weight | Resistance of Conductorat 20°C | Breaking Load | Final Modulus of Elasticity | Linear Expansion | |
2 | No./mm | 2 | mm | kg/km | Ω/km | daN | hbar | ℃ | ||
Midge | 22 | 7/2.06 | 23.33 | 6.18 | 64 | 1.2270 | 399 | 5900 | -6 | |
Aphis | 25 | 3/3.35 | 26.40 | 7.20 | 73 | 1.0810 | 411 | 5900 | -6 | |
Gnat | 25 | 7/2.21 | 26.80 | 6.60 | 73 | 1.0660 | 459 | 5900 | -6 | |
Weevil | 30 | 3/3.66 | 31.60 | 7.90 | 86 | 0.9082 | 486 | 5900 | -6 | |
Mosquito | 35 | 7/2.59 | 37.00 | 7.80 | 101 | 0.7762 | 603 | 5900 | -6 | |
Ladybird | 40 | 7/2.79 | 42.80 | 8.40 | 117 | 0.6689 | 687 | 5900 | -6 | |
Ant | 50 | 7/3.10 | 52.83 | 9.30 | 145 | 0.5419 | 828 | 5900 | -6 | |
Fly | 60 | 7/3.40 | 63.55 | 10.20 | 174 | 0.4505 | 990 | 5900 | -6 | |
Bluebottle | 70 | 7/3.66 | 73.70 | 11.00 | 202 | 0.3881 | 1134 | 5900 | -6 | |
Earwing | 75 | 7/3.78 | 78.50 | 11.40 | 215 | 0.3644 | 1194 | 5900 | -6 | |
Grasshopper | 80 | 7/3.91 | 84.10 | 11.70 | 230 | 0.3406 | 1278 | 5900 | -6 | |
Clegg | 90 | 7/4.17 | 95.60 | 12.50 | 262 | 0.2994 | 1453 | 5900 | -6 | |
Wasp | 100 | 7/4.39 | 106.00 | 13.17 | 290 | 0.2702 | 1600 | 5900 | -6 | |
Beetle | 100 | 19/2.67 | 106.00 | 13.40 | 293 | 0.2704 | 1742 | 5600 | -6 | |
Bee | 125 | 7/4.90 | 132.00 | 14.70 | 361 | 0.2169 | 1944 | 5900 | -6 | |
Cricket | 150 | 7/5.36 | 157.90 | 16.10 | 432 | 0.1818 | 2385 | 5900 | -6 | |
Hornet | 150 | 19/3.25 | 157.60 | 16.25 | 434 | 0.1825 | 2570 | 5600 | -6 | |
Caterpillar | 175 | 19/3.53 | 186.00 | 17.70 | 512 | 0.1547 | 2863 | 5600 | -6 | |
Chafer | 200 | 19/3.78 | 213.20 | 18.90 | 587 | 0.1349 | 3240 | 5600 | -6 | |
Spider | 225 | 19/3.99 | 236.90 | 20.00 | 652 | 0.1211 | 3601 | 5600 | -6 | |
Cockroach | 250 | 19/4.22 | 265.70 | 21.10 | 731 | 0.1083 | 4040 | 5600 | -6 | |
Butterfly | 300 | 19/4.65 | 322.70 | 23.25 | 888 | 0.0892 | 4875 | 5600 | -6 | |
Moth | 350 | 19/5.00 | 373.20 | 25.00 | 1027 | 0.0771 | 5637 | 5600 | -6 | |
Drone | 350 | 37/3.58 | 373.30 | 25.10 | 1029 | 0.0774 | 5745 | 5600 | -6 | |
Locust | 400 | 19/5.36 | 428.50 | 26.80 | 1179 | 0.0671 | 6473 | 5600 | -6 | |
Centipede | 400 | 37/3.78 | 415.20 | 26.46 | 1145 | 0.0694 | 6310 | 5600 | -6 | |
Maybug | 450 | 37/4.09 | 486.90 | 28.60 | 1342 | 0.0593 | 7401 | 5600 | -6 | |
Scorpion | 500 | 37/4.27 | 529.50 | 29.90 | 1460 | 0.0544 | 7998 | 5600 | -6 | |
Cicada | 600 | 37/4.65 | 628.60 | 32.60 | 1733 | 0.0459 | 9495 | 5600 | -6 | |
Tarantula | 750 | 37/5.23 | 794.60 | 36.60 | 2191 | 0.0363 | 12010 | 5600 | -6 | |
IEC 61089
All Aluminum Stranded Conductor (AAC)
Cross Section | Wires | Diameter | Rated Strength | Max. DC Resistance at 20°C | ||
Wires | Conductor | Linear Mass | ||||
2 | - | mm | mm | kg/km | kN | Ω/km |
10 | 7 | 1.35 | 4.05 | 27.4 | 1.95 | 2.8633 |
16 | 7 | 1.71 | 5.12 | 43.8 | 3.04 | 1.7896 |
25 | 7 | 2.13 | 6.40 | 68.4 | 4.50 | 1.1453 |
40 | 7 | 2.7 | 8.09 | 109.4 | 6.80 | 0.7158 |
63 | 7 | 3.39 | 10.20 | 172.3 | 10.39 | 0.4545 |
100 | 19 | 2.59 | 12.90 | 274.8 | 17.00 | 0.2877 |
125 | 19 | 2.89 | 14.50 | 343.6 | 21.25 | 0.2302 |
160 | 19 | 3.27 | 16.40 | 439.8 | 26.40 | 0.1798 |
200 | 19 | 3.66 | 18.30 | 549.7 | 32.00 | 0.1439 |
250 | 19 | 4.09 | 20.50 | 687.1 | 40.00 | 0.1151 |
315 | 37 | 3.29 | 23.00 | 867.9 | 51.97 | 0.0916 |
400 | 37 | 3.71 | 26.00 | 1102.0 | 64.00 | 0.0721 |
450 | 37 | 3.94 | 27.50 | 1239.8 | 72.00 | 0.0641 |
500 | 37 | 4.15 | 29.00 | 1377.6 | 80.00 | 0.0577 |
560 | 37 | 4.39 | 30.70 | 1542.9 | 89.60 | 0.0515 |
630 | 61 | 3.63 | 32.60 | 1738.3 | 100.08 | 0.0458 |
710 | 61 | 3.85 | 34.60 | 1959.1 | 113.60 | 0.0407 |
800 | 61 | 4.09 | 36.80 | 2207.4 | 128.00 | 0.0361 |
900 | 61 | 4.33 | 39.00 | 2483.3 | 144.00 | 0.0321 |
1000 | 61 | 4.57 | 41.10 | 2759.2 | 160.00 | 0.0289 |
1120 | 91 | 3.96 | 43.50 | 3093.5 | 179.20 | 0.0258 |
1250 | 91 | 4.18 | 46.00 | 3452.6 | 200.00 | 0.0231 |
1400 | 91 | 4.43 | 48.70 | 3866.9 | 224.00 | 0.0207 |
1500 | 91 | 4.58 | 50.40 | 4143.1 | 240.00 | 0.0193 |
DIN 48201
All Aluminum Stranded Conductor (AAC)
Code Number |
Calculated Cross Section |
No./Dia. of Stranding Wire |
Overall Diameter |
Linear Mass |
Calculated Breaking Load | Max. DC Resistance at 20°C |
mm² | mm² | No./mm | mm | kg/km | daN | Ω/km |
16 | 15.89 | 7/1.70 | 5.1 | 44 | 290 | 1.8018 |
25 | 24.25 | 7/2.10 | 6.3 | 67 | 425 | 1.1808 |
35 | 34.36 | 7/2.50 | 7.5 | 94 | 585 | 0.8332 |
50 | 49.48 | 7/3.00 | 9.0 | 135 | 810 | 0.5786 |
50 | 48.36 | 19/1.80 | 9.0 | 133 | 860 | 0.5950 |
70 | 65.82 | 19/2.10 | 10.5 | 181 | 1150 | 0.4371 |
95 | 93.27 | 19/2.50 | 12.5 | 256 | 1595 | 0.3084 |
120 | 117.00 | 19/2.80 | 14.0 | 322 | 1910 | 0.2459 |
150 | 147.10 | 37/2.25 | 15.2 | 406 | 2570 | 0.1960 |
185 | 181.60 | 37/2.50 | 17.5 | 501 | 3105 | 0.1587 |
240 | 242.54 | 61/2.25 | 20.2 | 670 | 4015 | 0.1191 |
300 | 299.43 | 61/2.50 | 22.5 | 827 | 4850 | 0.0965 |
400 | 400.14 | 61/2.89 | 26.0 | 1105 | 6190 | 0.0722 |
500 | 499.83 | 61/3.23 | 29.1 | 1381 | 7600 | 0.0578 |
625 | 626.20 | 91/2.96 | 32.6 | 1733 | 9690 | 0.0463 |
800 | 802.10 | 91/3.35 | 36.8 | 2219 | 12055 | 0.0361 |
1000 | 999.71 | 91/3.74 | 41.1 | 2766 | 14845 | 0.0290 |
