DESCRIPTION:

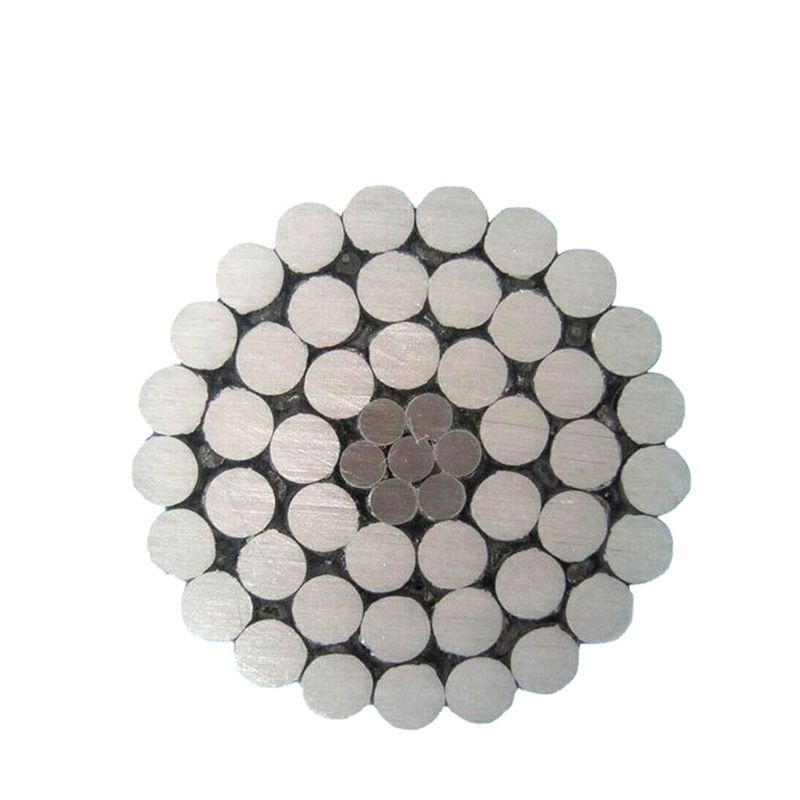

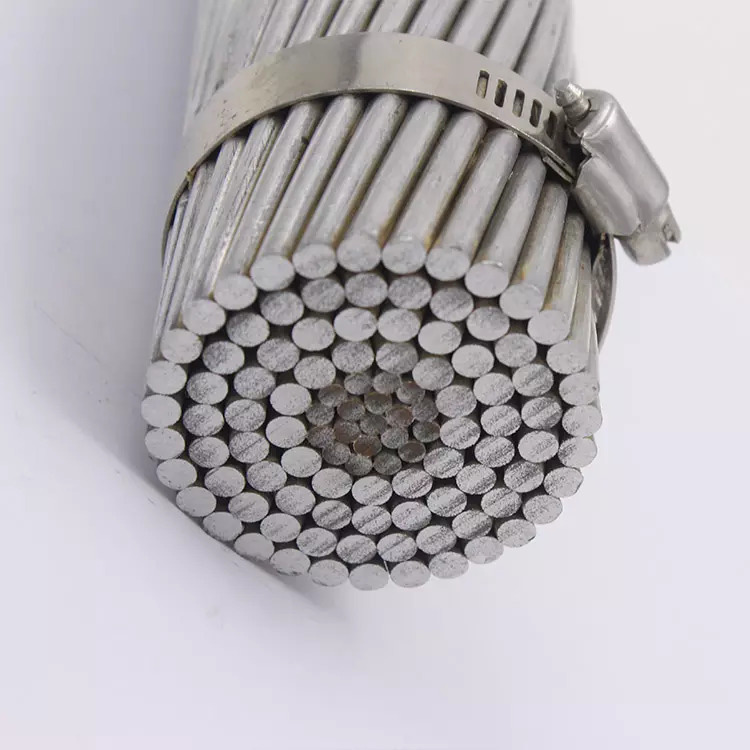

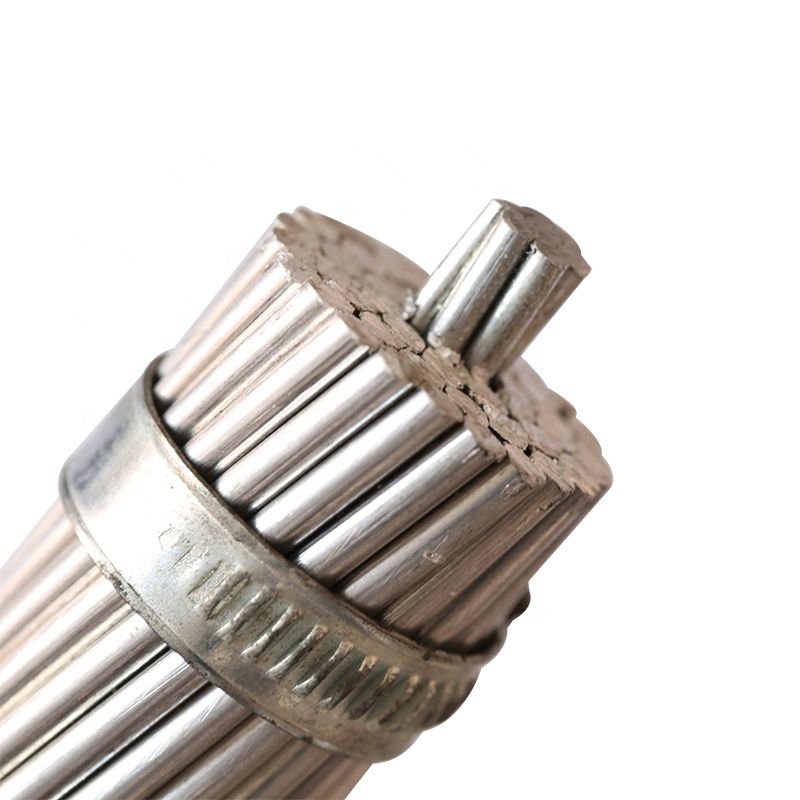

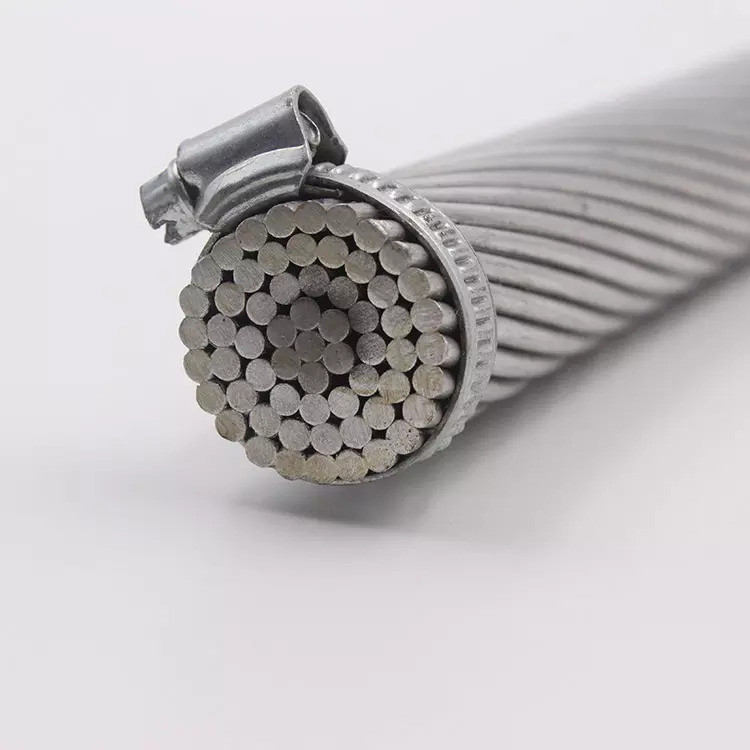

The aluminum conductor steel reinforced is made through stranding aluminum wires and steel wires, and is used as main power transmission line. Its inner part is the steel core, with the aluminum wires stranded around the steel core in a spiral manner and according to a certain rule. The steel core is used to enhance the strength of ACSR.
STANDARD:
ASTM B 232, BS 215 Part 2, IEC 61089, DIN 48204, etc.
ASTM B232
Aluminium Conductor Steel Reinforced(ACSR)
Code Name | Area | Equivale nt copper area | Stranding and wire diameter | Approx. overall diameter | Weight | Rated Strength | Maximum dc resistance at 20oC | |||||||
Aluminium | Steel | Total | Aluminium | Steel | Aluminium | Steel | Total | |||||||
AWG or MCM | mm2 | mm2 | mm2 | AWG or MCM | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | kN | Ω /km | |
TURKEY | 6 | 13.30 | 2.22 | 15.52 | 8 | 8.39 | 6/1.68 | 1/1.68 | 5.04 | 36.5 | 17 | 54 | 5.28 | 2.1499 |
THRUSH | 5 | 16.83 | 2.81 | 19.64 | 7 | 10.58 | 6/1.89 | 1/1.89 | 5.67 | 46.0 | 22 | 68 | 6.68 | 1.6987 |
SWAN | 4 | 21.18 | 3.53 | 24.71 | 6 | 13.29 | 6/2.12 | 1/2.12 | 6.36 | 58.0 | 27 | 85 | 8.30 | 1.3501 |
SWANATE | 4 | 21.12 | 5.35 | 26.47 | 6 | 13.29 | 7/1.96 | 1/2.61 | 6.53 | 58.0 | 42 | 100 | 10.68 | 1.3539 |
SWALLOW | 3 | 26.69 | 4.45 | 31.14 | 5 | 16.77 | 6/2.38 | 1/2.38 | 7.14 | 73.0 | 35 | 108 | 10.21 | 1.0712 |
SPARROW | 2 | 33.59 | 5.60 | 39.19 | 4 | 21.16 | 6/2.67 | 1/2.67 | 8.01 | 92.0 | 44 | 136 | 12.69 | 0.8512 |
SPARATE | 2 | 33.54 | 8.55 | 42.09 | 4 | 21.16 | 7/2.47 | 1/3.30 | 8.24 | 92.0 | 67 | 159 | 16.14 | 0.8525 |
ROBIN | 1 | 42.41 | 7.07 | 49.48 | 3 | 26.65 | 6/3.00 | 1/3.00 | 9.00 | 116.0 | 55 | 171 | 15.81 | 0.6742 |
RAVEN | 1/0 | 53.52 | 8.92 | 62.44 | 2 | 33.61 | 6/3.37 | 1/3.37 | 10.11 | 147.0 | 69 | 216 | 19.35 | 0.5343 |
QUAIL | 2/0 | 67.33 | 11.22 | 78.55 | 1 | 42.39 | 6/3.78 | 1/3.78 | 11.34 | 185.0 | 87 | 272 | 23.27 | 0.4247 |
PIGEON | 3/0 | 85.12 | 14.19 | 99.31 | 1/0 | 53.48 | 6/4.25 | 1/4.25 | 12.75 | 234.0 | 110 | 344 | 29.42 | 0.3359 |
PENGUIN | 4/0 | 107.20 | 17.87 | 125.10 | 2/0 | 67.42 | 6/4.77 | 1/4.77 | 14.31 | 294.0 | 139 | 433 | 36.54 | 0.2667 |
WAXWING | 266.8 | 135.00 | 7.50 | 142.50 | 3/0 | 85.03 | 18/3.09 | 1/3.09 | 15.45 | 372.0 | 59 | 431 | 30.27 | 0.2118 |
OWL | 266.8 | 135.40 | 17.62 | 153.00 | 3/0 | 85.03 | 6/5.36 | 7/1.79 | 16.09 | 371.0 | 138 | 512 | 42.95 | 0.2112 |
PARTRIDGE | 266.8 | 134.90 | 21.99 | 156.90 | 3/0 | 85.03 | 26/2.57 | 7/2.00 | 16.28 | 373.0 | 172 | 545 | 50.23 | 0.2141 |
OSTRICH | 300 | 152.20 | 24.71 | 176.90 | 189 | 95.48 | 26/2.73 | 7/2.12 | 17.28 | 422.0 | 193 | 615 | 56.55 | 0.1897 |
MERLIN | 336.4 | 170.20 | 9.46 | 179.70 | 4/0 | 107.23 | 18/3.47 | 1/3.47 | 17.35 | 469.0 | 74 | 543 | 38.17 | 0.1688 |
LINNET | 336.4 | 170.60 | 27.83 | 198.40 | 4/0 | 107.23 | 26/2.89 | 7/2.25 | 18.31 | 473.0 | 217 | 690 | 62.76 | 0.1693 |
ORIOLE | 336.4 | 170.50 | 39.78 | 210.30 | 4/0 | 107.23 | 30/2.69 | 7/2.69 | 18.83 | 474.0 | 311 | 785 | 77.43 | 0.1698 |
CHICKADEE | 397.7 | 200.90 | 11.16 | 212.10 | 250 | 126.45 | 18/3.77 | 1/3.77 | 18.85 | 555.0 | 87 | 642 | 43.37 | 0.1430 |
BRANT | 397.5 | 201.60 | 26.13 | 227.70 | 250 | 126.45 | 24/3.27 | 7/2.18 | 19.62 | 558.0 | 204 | 762 | 64.72 | 0.1433 |
IBIS | 397.5 | 201.30 | 32.73 | 234.00 | 250 | 126.45 | 26/3.14 | 7/2.44 | 19.88 | 558.0 | 256 | 814 | 72.05 | 0.1434 |
LARK | 397.5 | 200.90 | 46.88 | 247.80 | 250 | 126.45 | 30/2.92 | 7/2.92 | 20.44 | 558.0 | 367 | 925 | 90.30 | 0.1441 |
ASTM B232
Aluminium Conductor Steel Reinforced(ACSR)
Code Name |
Area | Equivalent copper area |
Stranding and wire diameter |
Approx. overall diameter |
Weight |
Rated Strengh |
Maximum dc resistance at 20oC | |||||||
Aluminium |
Steel |
Total |
Aluminium |
Steel |
Aluminium |
Steel |
Total | |||||||
AWG or MCM |
mm2 |
mm2 |
mm2 | AWG or MCM |
mm2 |
mm |
mm |
mm |
kg/km |
kg/km |
kg/km |
kN |
Ω /km | |
PELICAN | 477 | 242.30 | 13.46 | 255.80 | 300 | 152.26 | 18/4.14 | 1/4.14 | 20.70 | 668.0 | 105 | 773 | 52.30 | 0.1186 |
FLICKER | 477 | 241.60 | 31.40 | 273.00 | 300 | 152.26 | 24/3.58 | 7/2.39 | 21.49 | 669.0 | 245 | 914 | 76.78 | 0.1195 |
HAWK | 477 | 241.60 | 39.49 | 281.10 | 300 | 152.26 | 26/3.44 | 7/2.68 | 21.80 | 669.0 | 306 | 975 | 86.73 | 0.1195 |
HEN | 477 | 241.30 | 56.30 | 297.60 | 300 | 152.26 | 30/3.20 | 7/3.20 | 22.40 | 670.0 | 440 | 1110 | 105.16 | 0.1200 |
OSPREY | 556.5 | 282.50 | 15.69 | 298.20 | 350 | 172 | 18/4.47 | 1/4.47 | 22.35 | 779.0 | 122 | 901 | 60.52 | 0.1017 |
PARAKEET | 556.5 | 282.30 | 36.60 | 318.90 | 350 | 172 | 24/3.87 | 7/2.58 | 23.22 | 783.0 | 286 | 1069 | 88.29 | 0.1023 |
DOVE | 556.5 | 282.60 | 45.92 | 328.50 | 350 | 172 | 26/3.72 | 7/2.89 | 23.55 | 783.0 | 359 | 1142 | 101.10 | 0.1022 |
EAGLE | 556.5 | 282.10 | 65.82 | 347.90 | 350 | 172 | 30/3.46 | 7/3.46 | 24.21 | 784.0 | 515 | 1298 | 122.90 | 0.1026 |
PEACOCK | 605 | 306.10 | 39.78 | 345.90 | 381 | 187 | 24/4.03 | 7/2.69 | 24.20 | 849.0 | 311 | 1160 | 95.86 | 0.0943 |
SQUAB | 605 | 305.80 | 49.81 | 355.60 | 381 | 187 | 26/3.87 | 7/3.01 | 24.51 | 848.0 | 389 | 1237 | 109.60 | 0.0944 |
WOODDUCK | 605 | 307.10 | 71.65 | 378.80 | 381 | 187 | 30/3.61 | 7/3.61 | 25.25 | 853.0 | 560 | 1413 | 129.00 | 0.0943 |
TEAL | 605 | 307.10 | 69.62 | 376.70 | 381 | 187 | 30/3.61 | 19/2.16 | 25.24 | 853.0 | 545 | 1398 | 136.10 | 0.0943 |
KINGBIRD | 636 | 323.00 | 17.95 | 341.00 | 400 | 197 | 18/4.78 | 1/4.78 | 23.90 | 891.0 | 140 | 1031 | 69.72 | 0.0890 |
ROOK | 636 | 323.10 | 41.88 | 365.00 | 400 | 197 | 24/4.14 | 7/2.76 | 24.84 | 896.0 | 327 | 1223 | 101.00 | 0.0894 |
GROSBEAK | 636 | 321.80 | 52.49 | 374.30 | 400 | 197 | 26/3.97 | 7/3.09 | 25.15 | 892.0 | 410 | 1302 | 111.90 | 0.0897 |
SCOTER | 636 | 322.60 | 75.26 | 397.90 | 400 | 197 | 30/3.70 | 7/3.70 | 25.90 | 897.0 | 588 | 1485 | 135.50 | 0.0897 |
EGRET | 636 | 322.60 | 73.54 | 396.10 | 400 | 197 | 30/3.70 | 19/2.22 | 25.90 | 897.0 | 576 | 1473 | 140.60 | 0.0897 |
FLAMINGO | 666.6 | 337.30 | 43.72 | 381.00 | 419 | 206 | 24/4.23 | 7/2.82 | 25.34 | 935.0 | 342 | 1277 | 105.50 | 0.0856 |
GANNET | 666.6 | 338.30 | 54.90 | 393.20 | 419 | 201 | 26/4.07 | 7/3.16 | 25.76 | 938.0 | 429 | 1367 | 117.30 | 0.0854 |
CROW | 715.5 | 361.60 | 46.88 | 408.50 | 450 | 221 | 54/2.92 | 7/2.92 | 26.28 | 1003.0 | 366 | 1369 | 115.20 | 0.0799 |
STILT | 715.5 | 363.30 | 46.88 | 410.20 | 450 | 222 | 24/4.39 | 7/2.92 | 26.32 | 1007.0 | 366 | 1373 | 113.30 | 0.0795 |
STARLING | 715.5 | 361.90 | 59.15 | 421.10 | 450 | 221 | 26/4.21 | 7/3.28 | 26.68 | 1004.0 | 462 | 1466 | 125.90 | 0.0798 |
REDWING | 715.5 | 362.10 | 82.41 | 444.50 | 450 | 221 | 30/3.92 | 19/2.35 | 27.43 | 1006.0 | 645 | 1651 | 153.70 | 0.0800 |
ASTM B232
Aluminium Conductor Steel Reinforced(ACSR)
Code Name | Area |
Equivale nt copper area | Stranding and wire diameter |
Approx. overall diameter | Weight | Rated Strength | Maximum dc resistance at 20oC | |||||||
Aluminium |
Steel |
Total |
Aluminium |
Steel |
Aluminium |
Steel |
Total | |||||||
AWG or MCM |
mm2 |
mm2 |
mm2 |
AWG or MCM |
mm2 |
mm |
mm |
mm |
kg/km |
kg/km |
kg/km |
kN |
Ω /km | |
TERN | 795 | 403.80 | 27.83 | 431.60 | 500 | 246 | 45/3.38 | 7/2.25 | 27.03 | 1120.0 | 217 | 1337 | 97.47 | 0.0715 |
CONDOR | 795 | 402.30 | 52.15 | 454.50 | 500 | 245 | 54/3.08 | 7/3.08 | 27.72 | 1116.0 | 407 | 1523 | 124.30 | 0.0718 |
CUCKOO | 795 | 402.30 | 52.15 | 454.50 | 500 | 245 | 24/4.62 | 7/3.08 | 27.72 | 1116.0 | 407 | 1523 | 123.80 | 0.0718 |
DRAKE | 795 | 402.60 | 65.44 | 468.00 | 500 | 246 | 26/4.44 | 7/3.45 | 28.11 | 1116.0 | 511 | 1627 | 139.70 | 0.0717 |
MALLARD | 795 | 403.80 | 91.78 | 495.60 | 500 | 246 | 30/4.14 | 19/2.48 | 28.96 | 1122.0 | 718 | 1840 | 171.20 | 0.0717 |
CRANE | 874.5 | 442.50 | 57.36 | 499.90 | 550 | 270 | 54/3.23 | 7/3.23 | 29.07 | 1221.0 | 448 | 1669 | 136.70 | 0.0649 |
RUDDY | 900 | 455.50 | 31.67 | 487.20 | 566 | 278 | 45/3.59 | 7/2.40 | 28.74 | 1268.0 | 247 | 1510 | 109.40 | 0.0634 |
CANARY | 900 | 456.30 | 59.15 | 515.50 | 566 | 278 | 54/3.28 | 7/3.28 | 29.52 | 1265.0 | 462 | 1727 | 141.00 | 0.0633 |
RAIL | 954 | 483.80 | 33.54 | 517.30 | 600 | 295 | 45/3.70 | 7/2.47 | 29.61 | 1342.0 | 262 | 1604 | 116.10 | 0.0597 |
CARDINAL | 954 | 484.50 | 62.81 | 547.30 | 600 | 296 | 54/3.38 | 7/3.38 | 30.42 | 1343.0 | 491 | 1834 | 149.70 | 0.0596 |
ORLAN | 1033.5 | 523.90 | 36.31 | 560.20 | 650 | 320 | 45/3.85 | 7/2.57 | 30.81 | 1453.0 | 283 | 1736 | 123.30 | 0.0551 |
CURLEW | 1033.5 | 525.50 | 68.10 | 593.60 | 650 | 321 | 54/3.52 | 7/3.52 | 31.68 | 1457.0 | 532 | 1989 | 162.40 | 0.0550 |
BLUEJAY | 1113 | 565.50 | 38.90 | 604.40 | 700 | 345 | 45/4.00 | 7/2.66 | 31.98 | 1568.0 | 304 | 1872 | 132.70 | 0.0511 |
FINCH | 1113 | 565.00 | 71.57 | 636.60 | 700 | 345 | 54/3.65 | 19/2.19 | 32.85 | 1574.0 | 560 | 2134 | 174.60 | 0.0514 |
BUNTING | 1192.5 | 605.80 | 41.90 | 647.70 | 750 | 370 | 45/4.14 | 7/2.76 | 33.12 | 1680.0 | 327 | 2007 | 142.40 | 0.0477 |
GRACKLE | 1192.5 | 602.80 | 76.90 | 679.70 | 750 | 368 | 54/3.77 | 19/2.27 | 33.97 | 1680.0 | 601 | 2281 | 184.20 | 0.0481 |
BITTERN | 1272 | 644.40 | 44.70 | 689.10 | 800 | 393 | 45/4.27 | 7/2.85 | 34.17 | 1787.0 | 349 | 2136 | 151.40 | 0.0448 |
PHEASANT | 1272 | 645.10 | 81.71 | 726.80 | 800 | 394 | 54/3.90 | 19/2.34 | 35.10 | 1797.0 | 640 | 2137 | 194.10 | 0.0450 |
DIPPER | 1351.5 | 684.20 | 47.20 | 731.10 | 850 | 417 | 45/4.40 | 7/2.92 | 35.16 | 1897.0 | 366 | 2263 | 160.30 | 0.0422 |
MARTIN | 1351.5 | 685.40 | 86.70 | 772.10 | 850 | 418 | 54/4.02 | 19/2.41 | 36.17 | 1910.0 | 678 | 2588 | 206.10 | 0.0423 |
BOBOLINK | 1431 | 725.20 | 50.10 | 775.40 | 900 | 442 | 45/4.53 | 7/3.02 | 36.24 | 2011.0 | 392 | 2403 | 168.60 | 0.0398 |
PLOVER | 1431 | 726.90 | 91.80 | 818.70 | 900 | 443 | 54/4.14 | 19/2.48 | 37.24 | 2025.0 | 719 | 2744 | 218.40 | 0.0399 |
NUTHATCH | 1510.5 | 764.20 | 52.80 | 817.00 | 950 | 466 | 45/4.65 | 7/3.10 | 37.20 | 2119.0 | 413 | 2532 | 177.60 | 0.0378 |
PARROT | 1510.5 | 766.10 | 97.00 | 863.10 | 950 | 467 | 54/4.25 | 19/2.55 | 38.25 | 2134.0 | 760 | 2894 | 230.50 | 0.0379 |
ASTM B232
Aluminium Conductor Steel Reinforced(ACSR)
Code Name |
Area |
Equivale nt copper area | Stranding and wire diameter |
Approx. overall diameter |
Weight |
Rated Strength |
Maximum dc resistance at20oC | ||||||||||
Aluminium |
Steel |
Total |
Aluminium |
Steel |
Aluminium |
Steel |
Total | ||||||||||
AWG or MCM |
mm2 |
mm2 |
mm2 | AWG or MCM |
mm2 |
mm |
mm |
mm |
kg/km |
kg/km |
kg/km |
kN |
Ω /km | ||||
LAPWING | 1590 | 804.10 | 55.60 | 859.80 | 1000 | 491 | 45/4.77 | 7/3.18 | 38.16 | 2230.0 | 424 | 2664 | 186.90 | 0.0359 | |||
FALCON | 1590 | 806.20 | 102.40 | 908.70 | 1000 | 492 | 54/4.36 | 19/2.62 | 39.26 | 2246.0 | 802 | 3048 | 243.00 | 0.0360 | |||
CHUKER | 1780 | 903.20 | 73.50 | 976.70 | 1119 | 551 | 84/3.70 | 19/2.22 | 40.70 | 2516.0 | 576 | 3092 | 227.80 | 0.0321 | |||
High Strength Strandings | |||||||||||||||||
GROUSE | 80 | 40.54 | 14.12 | 54.66 | 50 | 25 | 8/2.54 | 1/4.24 | 9.32 | 111.0 | 110 | 221 | 23.06 | 0.7089 | |||
PETREL | 101.8 | 51.61 | 30.10 | 81.71 | 64 | 32 | 12/2.34 | 7/2.34 | 11.70 | 143.0 | 235 | 378 | 46.16 | 0.5595 | |||
MIORCA | 110.8 | 56.11 | 32.73 | 88.84 | 70 | 34 | I 2/2.44 | 7/2.44 | 12.20 | 155.0 | 256 | 411 | 50.19 | 0.5146 | |||
LEGHORN | 134.6 | 68.20 | 39.78 | 108.00 | 85 | 42 | 12/2.69 | 7/2.69 | 13.46 | 189.0 | 311 | 500 | 60.67 | 0.4234 | |||
GUINEA |
159 |
80.36 |
46.88 |
127.20 |
100 |
49 |
12/2.92 |
7/2.92 |
14.60 |
223.0 |
367 |
590 |
71.10 |
0.3593 | |||
DOTTEREL |
176.9 |
89.41 |
52.15 |
141.60 |
111 |
55 |
12/3.08 |
7/3.08 |
15.40 |
248.0 |
408 |
656 |
76.68 |
0.3230 | |||
DORKING | 190.8 | 96.5 I | 56.30 | 152.80 | 120 | 59 | 12/3.20 | 7/3.20 | 16.00 | 267.0 | 440 | 707 | 82.77 | 0.2992 | |||
COCHIN | 211.3 | 107.00 | 62.44 | 169.40 | 133 | 65 | 12/3.37 | 7/3.37 | 16.85 | 296.0 | 488 | 784 | 91.79 | 0.2698 | |||
BRAHMA | 203.2 | 102.80 | 91.78 | 194.60 | 128 | 63 | 16/2.86 | 19/2.48 | 18.12 | 285.0 | 718 | 1003 | 126.52 | 0.2809 | |||
BS 215
Aluminium Conductor Steel Reinforced(ACSR)
Code Name | Nominal aluminium area | Equivalent copper area | Straning and wire diameter | Overall diameter | Totalarea | Weights | Calculated breaking load | Maximum dc resistance at 20℃ | |||||
Aluminium | Steel | Aluminium | Steel | Total | Aluminium | Steel | Total | ||||||
mm2 | mm2 | mm | mm | mm | mm2 | mm2 | mm2 | kg/km | kg/km | kg/km | kN | Ω/km | |
MOLE | 10 | 6.5 | 6/1.50 | 1/1.50 | 4.5 | 10.6 | 1.77 | 12.4 | 29 | 14 | 43 | 4.1 | 2.7060 |
SQUIRREL | 20 | 12.9 | 6/2.11 | 1/2.11 | 6.33 | 20.98 | 3.49 | 24.5 | 58 | 27 | 85 | 7.9 | 1.3700 |
GOPHER | 25 | 16.1 | 6/2.36 | 1/2.36 | 7.08 | 26.25 | 4.37 | 30.6 | 72 | 34 | 106 | 9.6 | 1.0930 |
WEASEL | 30 | 19.4 | 6/2.59 | 1/2.59 | 7.77 | 31.61 | 5.27 | 36.9 | 87 | 41 | 128 | 11.4 | 0.9077 |
FOX | 35 | 22.6 | 6/2.79 | 1/2.79 | 8.37 | 36.68 | 6.11 | 42.8 | 101 | 48 | 149 | 13.2 | 0.7822 |
FERRET |
40 |
25.8 |
6/3.00 |
1/3.00 |
9 |
42.41 |
7.07 |
49.5 |
117 |
55 |
172 |
15.2 |
0.6766 |
RABBIT | 50 | 32.3 | 6/3.35 | 1/3.35 | 10.05 | 52.88 | 8.81 | 61.7 | 145 | 69 | 214 | 18.4 | 0.5426 |
MINK | 60 | 38.7 | 6/3.66 | 1/3.66 | 10.98 | 63.13 | 10.52 | 73.7 | 173 | 82 | 255 | 21.9 | 0.4545 |
SKUNK | 60 | 38.7 | 12/2.59 | 7/2.59 | 12.95 | 63.22 | 36.88 | 100.1 | 175 | 290 | 465 | 52.9 | 0.4568 |
BEAVER | 70 | 45.2 | 6/3.99 | 1/3.99 | 11.97 | 75.02 | 12.50 | 87.5 | 205 | 97 | 302 | 25.8 | 0.3825 |
HORSE |
70 |
45.2 |
12/2.79 |
7/2.79 |
13.95 |
73.36 |
42.80 |
116.2 |
203 |
335 |
538 |
61.2 |
0.3936 |
RACOON | 75 | 48.4 | 6/4.10 | 1/4.10 | 12.3 | 79.21 | 13.20 | 92.4 | 217 | 103 | 320 | 27.2 | 0.3623 |
OTTER | 80 | 51.6 | 6/4.22 | 1/4.22 | 12.66 | 83.92 | 13.99 | 97.9 | 230 | 109 | 339 | 28.8 | 0.3419 |
CAT | 90 | 58.1 | 6/4.50 | 1/4.50 | 13.5 | 95.43 | 15.90 | 111.3 | 262 | 124 | 386 | 32.7 | 0.3006 |
HARE | 100 | 64.5 | 6/4.72 | 1/4.72 | 14.16 | 105 | 17.50 | 122.5 | 288 | 137 | 425 | 35.9 | 0.2733 |
DOG | 100 | 64.5 | 6/4.72 | 7/1.57 | 14.15 | 105 | 13.55 | 118.6 | 288 | 106 | 394 | 32.7 | 0.2733 |
HYENA | 100 | 64.5 | 7/4.39 | 7/1.93 | 14.57 | 106 | 20.48 | 126.5 | 290 | 160 | 450 | 41.0 | 0.2702 |
LEOPARD | 125 | 80.7 | 6/5.28 | 7/1.75 | 15.81 | 131.4 | 16.84 | 148.5 | 360 | 132 | 492 | 40.8 | 0.2185 |
COYOTE | 125 | 80.7 | 26/2.54 | 7/1.91 | 15.89 | 131.7 | 20.06 | 151.8 | 365 | 157 | 522 | 46.3 | 0.2191 |
COUGAR | 125 | 80.7 | 18/3.05 | 1/3.05 | 15.25 | 131.5 | 7.31 | 138.8 | 362 | 57 | 419 | 30.1 | 0.2190 |
BS 215
Aluminium Conductor Steel Reinforced(ACSR)
Code Name | Nominal aluminium area | Equivalent copper area | Stranding and wire diameter | Overall diameter | Totalarea | Weights | Calculated breaking load | Maximum dc resistance at 20℃ | |||||
Aluminium | Steel | Aluminium | Steel | Total | Aluminium | Steel | Total | ||||||
mm2 | mm2 | mm | mm | mm | mm2 | mm2 | mm2 | kg/km | kg/km | kg/km | kN | Ω/km | |
TIGER | 125 | 80.7 | 30/2.36 | 7/2.36 | 16.52 | 131.2 | 30.62 | 161.8 | 362 | 240 | 602 | 58.0 | 0.2202 |
WOLF | 150 | 96.8 | 30/2.59 | 7/2.59 | 18.13 | 158.1 | 36.88 | 194.9 | 437 | 289 | 726 | 69.2 | 0.1828 |
DINGO | 150 | 97.9 | 18/3.35 | 1/3.35 | 16.75 | 158.7 | 8.81 | 167.5 | 437 | 69 | 506 | 35.7 | 0.1815 |
LYNX | 175 | 113 | 30/2.79 | 7/2.79 | 19.53 | 183.4 | 42.79 | 226.2 | 507 | 335 | 842 | 79.8 | 0.1576 |
CARACAL | 175 | 113.7 | 18/3.61 | 1/3.61 | 18.05 | 184.2 | 10.24 | 194.5 | 507 | 81 | 587 | 41.1 | 0.1563 |
PANTHER | 200 | 129 | 30/3.00 | 7/3.00 | 21 | 212.1 | 49.48 | 261.6 | 586 | 388 | 974 | 92.3 | 0.1363 |
LION | 225 | 145 | 30/3.18 | 7/3.18 | 22.26 | 238.3 | 55.60 | 293.9 | 659 | 436 | 1095 | 100.5 | 0.1212 |
BEAR | 250 | 161 | 30/3.35 | 7/3.35 | 23.45 | 264.4 | 61.70 | 326.1 | 730 | 483 | 1213 | 111.2 | 0.1093 |
GOAT | 300 | 194 | 30/3.71 | 7/3.71 | 25.97 | 324.3 | 75.67 | 400.0 | 896 | 593 | 1489 | 135.8 | 0.0891 |
SHEEP | 350 | 226 | 30/3.99 | 7/3.99 | 27.93 | 375.1 | 87.53 | 462.6 | 1034 | 684 | 1718 | 156.3 | 0.0770 |
ANTELOPE | 350 | 226 | 54/2.97 | 7/2.97 | 26.73 | 374.1 | 48.49 | 422.6 | 1032 | 379 | 1411 | 118.5 | 0.0773 |
BISON | 350 | 226 | 54/3.00 | 7/3.00 | 27 | 381.7 | 49.48 | 431.2 | 1056 | 388 | 1444 | 120.9 | 0.0757 |
JAGUAR | 200 | 130 | 18/3.86 | 1/3.86 | 19.3 | 210.6 | 11.70 | 222.3 | 580 | 91 | 671 | 46.6 | 0.1367 |
DEER | 400 | 258 | 30/4.27 | 7/4.27 | 29.89 | 429.6 | 100.20 | 529.8 | 1186 | 785 | 1971 | 178.5 | 0.0673 |
ZEBRA | 400 | 258 | 54/3.18 | 7/3.18 | 28.62 | 428.9 | 55.60 | 484.5 | 1186 | 435 | 1621 | 131.9 | 0.0674 |
ELK | 450 | 290 | 30/4.50 | 7/4.50 | 31.5 | 477.1 | 111.30 | 588.4 | I318 | 872 | 2190 | 198.3 | 0.0606 |
CAMEL | 450 | 290 | 54/3.35 | 7/3.35 | 30.15 | 475.9 | 61.70 | 537.6 | I314 | 483 | 1797 | 145.9 | 0.0607 |
MOOSE | 500 | 323 | 54/3.53 | 7/3.53 | 31.77 | 528.5 | 68.51 | 597.0 | 1462 | 537 | 1999 | 161.0 | 0.0547 |
DIN 48204
Aluminium Conductor SteelReinforced(ACSR)
Area | Equivalent copper area | Stranding and wire diameter | Overall Diameter | Weight | Calculated breaking load | Maximum DC resistance at 20 ℃ | |||||||||||||||
Nominal | Aluminium | Steel | Total | ||||||||||||||||||
Aluminium | Steel | Aluminium | Steel | Aluminium | Steel | Total |
kN |
Ω /km | |||||||||||||
mm2 | mm2 | mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | ||||||||||
16 | 2.5 | 15.3 | 2.6 | 17.9 | 9.3 | 6/1.80 | 1/1.80 | 5.4 | 41.8 | 19.9 | 61.7 | 5.81 | 1.8793 | ||||||||
25 | 4.0 | 23.8 | 4.0 | 27.8 | 14.5 | 6/2.25 | 1/2.25 | 6.8 | 65.4 | 31.0 | 96.4 | 9.02 | 1.2028 | ||||||||
35 | 6.0 | 34.3 | 5.7 | 40.0 | 20.9 | 6/2.70 | 1/2.70 | 8.1 | 94.2 | 44.7 | 138.9 | 12.70 | 0.8353 | ||||||||
44 | 32.0 | 44.0 | 31.7 | 75.7 | 26.8 | 14/2.00 | 7/2.40 | 11.2 | 121.4 | 248.2 | 369.6 | 45.46 | 0.6573 | ||||||||
50 |
8.0 |
48.3 |
8.0 |
56.3 |
29.5 |
6/3.20 |
1/3.20 |
9.6 |
132.2 |
62.7 |
194.9 |
17.18 |
0.5946 | ||||||||
50 |
30 |
51.2 |
29.8 |
81.0 |
31.2 |
12/2.33 |
7/2.33 |
11.7 |
141.1 |
233.9 |
375.0 |
44.28 |
0.5644 | ||||||||
70 | 12 | 69.9 | 11.4 | 81.3 | 42.6 | 26/ I .85 | 7/1.44 | 11.7 | 192.8 | 89.4 | 282.2 | 26.31 | 0.4130 | ||||||||
95 | 15 | 94.4 | 15.3 | 109.7 | 57.6 | 26/2. I 5 | 7/1.67 | 13.6 | 260.3 | 120.1 | 380.4 | 35.17 | 0.3058 | ||||||||
95 | 55 | 96.5 | 56.3 | 152.8 | 58.9 | 12/3.20 | 7/3.20 | 16.0 | 266.2 | 441.1 | 707.3 | 80.20 | 0.2992 | ||||||||
105 |
75 |
105.7 |
75.5 |
181.5 |
64.5 |
14/3.10 |
19/2.25 |
17.5 |
291.8 |
594.0 |
885.8 |
106.69 |
0.2376 | ||||||||
120 |
20 |
121.6 |
19.8 |
141.4 |
74.2 |
26/2.44 |
711.90 |
15.5 |
335.5 |
155.5 |
491.0 |
44.94 |
0.2374 | ||||||||
120 | 70 | 122.0 | 71.3 | 193.3 | 74.4 | 12/3.60 | 7/3.60 | 18.0 | 337.0 | 558.0 | 895.0 | 98.16 | 0.2364 | ||||||||
125 | 30 | 127.9 | 29.8 | 157.7 | 78.0 | 30/2.33 | 7/2.33 | 16.1 | 353.0 | 233.9 | 586.9 | 57.86 | 0.2259 | ||||||||
150 | 25 | 148.9 | 24.2 | 173.1 | 90.8 | 26/2.70 | 7/2.10 | 17.1 | 410.6 | 190.0 | 600.6 | 54.37 | 0.1939 | ||||||||
170 | 40 | 171.8 | 40.1 | 211.9 | 104.8 | 30/2.70 | 712.7 | 18.9 | 474.2 | 314.0 | 788.2 | 77.01 | 0.1682 | ||||||||
185 | 30 | 183.8 | 29.8 | 213.6 | 112.1 | 26/3.00 | 7/2.33 | 19 | 507.0 | 233.9 | 740.9 | 66.28 | 0.1571 | ||||||||
DIN 48204
Aluminium Conductor Steel Reinforced(ACSR)
Area | Equivalent copper area | Stranding and wire diameter |
Overall Diameter |
Weight | Calculated breaking load | Maximum DC resistance at 20 ℃ | |||||||
Nominal |
Aluminium |
Steel |
Total | ||||||||||
Aluminium | Steel | Aluminium | Steel | Aluminium | Steel | Total |
kN |
Ω /km | |||||
mm2 | mm2 | mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | ||
210 | 35 | 209.1 | 34.1 | 243.2 | 128 | 26/3.20 | 7/2.49 | 20.3 | 576.6 | 267.1 | 843.7 | 74.94 | 0.1380 |
210 | 50 | 212.1 | 49.5 | 261.6 | 129 | 30/3.00 | 7/3.00 | 21.0 | 585.5 | 387.7 | 973.2 | 92.23 | 0.1363 |
230 | 30 | 230.9 | 29.8 | 260.7 | 141 | 24/3.50 | 7/2.33 | 21.0 | 636.5 | 233.9 | 870.4 | 73.09 | 0.1249 |
240 | 40 | 243.0 | 39.5 | 282.5 | 148 | 26/3.45 | 7/2.68 | 21.8 | 670.4 | 309.4 | 979.8 | 86.46 | 0.1188 |
265 |
35 |
263.7 |
34.1 |
297.8 |
161 |
24/3.74 |
7/2.49 |
22.4 |
726.9 |
267.1 |
994.0 |
82.94 |
0.1094 |
300 | 50 | 304.3 | 49.5 | 353.7 | 186 | 26/3.86 | 7/3.00 | 24.5 | 839.0 | 387.7 | 1226.7 | 105.09 | 0.0949 |
305 | 40 | 304.6 | 39.5 | 344.1 | 186 | 54/2.68 | 7/2.68 | 24.1 | 841.2 | 309.4 | 1150.6 | 99.30 | 0.0949 |
340 | 30 | 339.3 | 29.8 | 369.1 | 207 | 48/3.00 | 7/2.33 | 25.0 | 936.8 | 233.9 | 1170.7 | 92.56 | 0.0851 |
380 | 50 | 382.0 | 49.5 | 431.5 | 233 | 54/3.00 | 7/3.00 | 27.0 | 1054.3 | 387.7 | 1442.0 | 120.91 | 0.0757 |
385 |
35 |
386.0 |
34.1 |
420.1 |
235 |
48/3.20 |
7/2.49 |
26.7 |
1065.4 |
267.1 |
1332.5 |
194.31 |
0.0748 |
435 | 55 | 434.3 | 56.3 | 490.6 | 265 | 54/3.20 | 7/3.20 | 28.8 | 1199.0 | 441.1 | 1631.1 | 136.27 | 0.0666 |
450 | 40 | 448.7 | 39.5 | 488.2 | 274 | 48/3.45 | 7/2.68 | 28.7 | 1238.6 | 309.4 | 1548.0 | 120.19 | 0.0644 |
490 | 65 | 490.3 | 63.6 | 553.9 | 299 | 54/3.40 | 7/3.40 | 30.6 | 1353.7 | 498.0 | 1851.7 | 152.85 | 0.0590 |
550 | 70 | 550.0 | 71.3 | 621.3 | 336 | 54/3.60 | 7/3.60 | 32.4 | 1518.3 | 558.3 | 2076.6 | 167.42 | 0.0526 |
560 |
50 |
561.7 |
49.5 |
611.2 |
343 |
48/3.86 |
7/3.00 |
32.2 |
1550.2 |
387.7 |
1937.9 |
146.28 |
0.0514 |
680 | 85 | 678.6 | 86.0 | 764.6 | 414 | 54/4.00 | 19/2.40 | 36.0 | 1874.5 | 675.8 | 2550.3 | 209.99 | 0.0426 |
Aluminium Conductor Steel Reinforced(ACSR)
Code Name | Totalarea |
Equivalent copper area | Stranding and wire diameter | overall diameter | Weight | Rated Strength | Maximum dc resistance at 20℃ | ||||||
Aluminium | Steel | Total | Aluminium | Steel | Aluminium | Steel | Total |
kN |
Ω /km | ||||
mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | ||||
Canna37.7 | 28.27 | 9.42 | 37.69 | 17.2 | 9/2.0 | 3/2.0 | 8.3 | 78 | 77 | 155 | 1625 | 1.020 | |
Canna59.7 | 37.30 | 21.99 | 59.29 | 22.8 | 12/2.0 | 7/2.0 | 10.0 | 104 | 172 | 276 | 3270 | 0.766 | |
Canna75.5 | 47.71 | 27.83 | 75.54 | 29.1 | 12/2.25 | 7/2.25 | 11.25 | 131 | 218 | 349 | 4115 | 0.605 | |
Canna93.3 | 58.9 | 34.34 | 93.3 | 36.0 | 12/2.5 | 7/2.5 | 12.50 | 162 | 269 | 431 | 4950 | 0.490 | |
Canna116.2 | 94.25 | 21.99 | 116.24 | 57.5 | 30/2.0 | 7/2.0 | 14.0 | 260 | 172 | 432 | 4315 | 0.306 | |
Canna147.1 |
119.28 |
27.83 |
147.11 |
72.8 |
30/2.25 |
7/2.25 |
15.75 |
329 |
218 |
547 |
5400 |
0.2430 | |
Crocus147.1 | 119.28 | 27.83 | 147.11 | 72.8 | 30/2.25 | 7/2.25 | 15.75 | 329 | 218 | 547 | 6180 | 0.2430 | |
Canna181.6 | 147.26 | 34.26 | 181.62 | 89.8 | 30/2.5 | 7/2.5 | 17.5 | 406 | 269 | 675 | 6490 | 0.1970 | |
Canna228 | 184.72 | 43.10 | 227.82 | 112.7 | 30/2.8 | 7/2.8 | 19.6 | 512 | 338 | 847 | 8050 | 0.1570 | |
Crocus228 | 184.72 | 43.10 | 227.82 | 112.7 | 30/2.8 | 7/2.8 | 19.6 | 510 | 338 | 847 | 9210 | 0.1570 | |
Canna288 |
233.8 |
54.55 |
288.35 |
142.6 |
30/3.15 |
7/3.15 |
22.05 |
645 |
426 |
1071 |
9850 |
0.1240 | |
Crocus288 | 233.8 | 54.55 | 288.35 | 142.6 | 30/3.15 | 7/3.15 | 22.05 | 645 | 426 | 1071 | 11380 | 0.1240 | |
Crocus297 | 221.67 | 75.54 | 297.21 | 135.2 | 36/2.8 | 19/2.25 | 22.45 | 618 | 592 | 1210 | 14720 | 0.1310 | |
Crocus412 | 325.72 | 85.95 | 411.67 | 198.7 | 32/3.6 | 19/2.4 | 26.4 | 906 | 674 | 1580 | 17330 | 0.0890 | |
Crocus612 |
507.83 |
104.79 |
611.8 |
309.8 |
66/4.24 |
19/2.65 |
32.03 |
1408 |
822 |
2230 |
23150 |
0.0571 | |
Crocus865 | 717.33 | 148.06 | 865.4 | 437.9 | 66/3.72 | 19/3.15 | 38.01 | 1990 | 1161 | 3151 | 31900 | 0.0404 | |
Crocus1185 |
956.66 |
227.82 |
1185 |
583.6 |
54/2.80 |
37/2.8 |
44.7 |
2668 |
1792 |
4460 |
48050 |
0.0304 | |
